Description
Overview

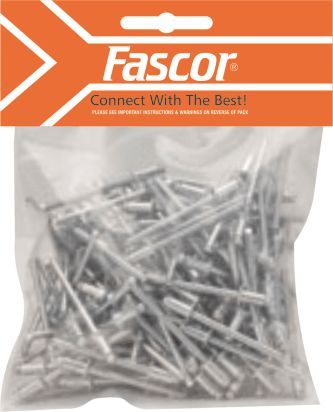

Blind (pop) rivet, Aluminium, size 4.8 mm x 24 mm.
Sold per piece. Screwman code AS4824T.
Description: POP RIVETS ALUMINIUM AS4824
Dimensions – ISO 15977 / DIN 7337 4.8 mm x 24 mm
| Standard | ISO 15977 / DIN 7337 |
|---|---|
| Product | Blind (pop) rivet |
| Rivet body diameter (d) | 4.8 mm |
| Length (l) | 24 mm |
| Drill hole | 4.9 mm |
| Head diameter (dk, dome) | 9.5 mm (typical) |
| Head height (k) | 1.6 mm (typical) |
| Head style | dome |
| Type | open end |
Material, Grade & Strength
| Material | Aluminium alloy (AlMg) body, steel mandrel |
|---|
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
ISO 15977 data sheet – all sizes
| Size | Drill hole | Dome head dia | Head height |
|---|---|---|---|
| 2.4 mm | 2.5 mm | 5 mm | 0.8 mm |
| 3 mm | 3.1 mm | 6 mm | 1 mm |
| 3.2 mm | 3.3 mm | 6.5 mm | 1.1 mm |
| 4 mm | 4.1 mm | 8 mm | 1.4 mm |
| 4.8 mm | 4.9 mm | 9.5 mm | 1.6 mm |
| 5 mm | 5.1 mm | 10 mm | 1.7 mm |
| 6 mm | 6.1 mm | 12 mm | 2 mm |
| 6.4 mm | 6.5 mm | 13 mm | 2.2 mm |
| 8 mm | 8.2 mm | 16 mm | 2.8 mm |
Nominal dimensions per ISO 15977 / DIN 7337. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
Specifications
No structured specifications are available yet.
