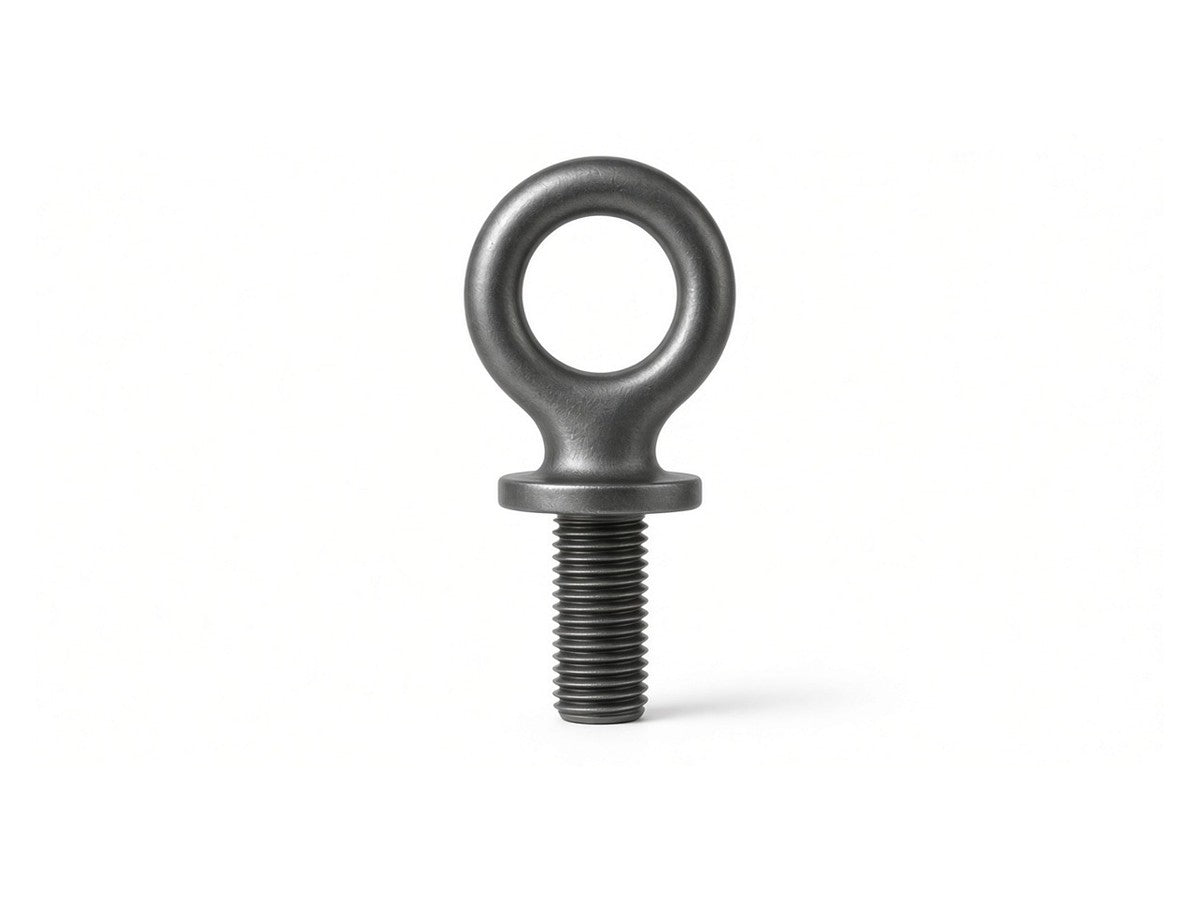

Lifting eye bolt, Steel, size M42.
Sold per piece. Screwman code EBM42.
Description: EYE BOLT M42 DIN 42
Data Sheet
Dimensions – DIN 580 M42
| Standard | DIN 580 |
|---|---|
| Product | Lifting eye bolt |
| Thread | M42 x 4.5 |
| Eye outer diameter (d1) | 144 mm |
| Eye inner diameter (d2) | 80 mm |
| Height (h) | 147 mm |
| Thread length (l) | 63 mm |
| Working load limit, single vertical | 6300 kg |
| Note | reduce WLL for angled lifts per DIN 580 table |
Material, Grade & Strength
| Material | C15E case-hardening steel, drop forged |
|---|---|
| Safety factor | min. 6:1 (DIN 580/582) |
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
DIN 580 data sheet – all sizes
| Size | Eye OD (d1) | Eye ID (d2) | Height (h) | WLL vertical |
|---|---|---|---|---|
| M8 | 36 mm | 20 mm | 36 mm | 140 kg |
| M10 | 45 mm | 25 mm | 45 mm | 230 kg |
| M12 | 54 mm | 30 mm | 53 mm | 340 kg |
| M16 | 63 mm | 35 mm | 62 mm | 700 kg |
| M20 | 72 mm | 40 mm | 71 mm | 1200 kg |
| M24 | 90 mm | 50 mm | 90 mm | 1800 kg |
| M30 | 108 mm | 60 mm | 109 mm | 3200 kg |
| M36 | 126 mm | 70 mm | 128 mm | 4600 kg |
| M42 | 144 mm | 80 mm | 147 mm | 6300 kg |
Nominal dimensions per DIN 580. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
