Description
Overview
DIN7 specifies the dimensional requirements for parallel pins, ensuring reliable interchangeability and engineering performance.
This selected size is specified with diameter M5, length 35 mm, thread M5, pitch 0.8 mm.
Sold per piece. Screwman code CAPTSS535H.
Material, Grade & Strength
Select the material and grade according to the intended load, environment and application.
Finish & Corrosion Protection
Plain finish is intended for protected indoor applications.
Typical Uses
Used in machinery, maintenance, manufacturing, agriculture, mining and general engineering applications.
Technical Tips
- Select the correct size and material for the application.
- Inspect components before installation.
- Follow recognised engineering practices and manufacturer recommendations.
Technical Drawing – DIN 7984
Dimension symbols refer to the table below. Drawing source: Fabory data sheet 07105.
Dimensions – DIN 7984 M5 x 35
| Standard | DIN 7984 |
|---|---|

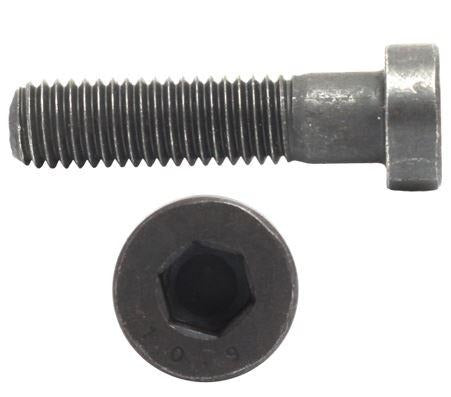

| Product | Hexagon socket cap screw, low head |
| Thread | M5 x 0.8 |
| Length (l) | 35 mm |
| Head diameter (dk) | 8.5 mm |
| Head height (k) | 3.5 mm |
| Hex key (s) | 3 mm |
| Thread length (b) | 22 mm (ref.) |
| Weight (calculated) | 6.13 kg per 1 000 pieces |
Material, Grade & Strength
| Material | High tensile alloy steel, property class 12.9 |
|---|---|
| Property class | 12.9 |
| Tensile strength Rm (min) | 1220 MPa |
| Yield / 0.2% proof Rp0.2 (min) | 1100 MPa |
| Proof load stress | 970 MPa |
| Hardness | 385-435 HV |
| Elongation after fracture (min) | 8 % |
| Matching nut | property class 12 (ISO 898-2) |
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
DIN 7984 data sheet – all sizes
| Size | Thread | Head diameter (dk) | Head height (k) | Hex key (s) | Thread length (b) |
|---|---|---|---|---|---|
| M3 | M3 x 0.5 | 5.5 mm | 2 mm | 2 mm | 18 mm (ref.) |
| M4 | M4 x 0.7 | 7 mm | 2.8 mm | 2.5 mm | 20 mm (ref.) |
| M5 | M5 x 0.8 | 8.5 mm | 3.5 mm | 3 mm | 22 mm (ref.) |
| M6 | M6 x 1 | 10 mm | 4 mm | 4 mm | 24 mm (ref.) |
| M8 | M8 x 1.25 | 13 mm | 5 mm | 5 mm | 28 mm (ref.) |
| M10 | M10 x 1.5 | 16 mm | 6 mm | 7 mm | 32 mm (ref.) |
| M12 | M12 x 1.75 | 18 mm | 7 mm | 8 mm | 36 mm (ref.) |
| M14 | M14 x 2 | 21 mm | 8 mm | 10 mm | 40 mm (ref.) |
| M16 | M16 x 2 | 24 mm | 9 mm | 12 mm | 44 mm (ref.) |
| M20 | M20 x 2.5 | 30 mm | 11 mm | 14 mm | 52 mm (ref.) |
| M24 | M24 x 3 | 36 mm | 13 mm | 17 mm | 60 mm (ref.) |
Nominal dimensions per DIN 7984. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
Specifications
| Measurement Type | Metric |
|---|---|
| Thread Size | M5 |
| Thread Pitch | 0.8 mm |
| Thread Style | Partial Thread |
| Drive Type | Hex |
| Head Style | Cap |
| Diameter | M5 |
| Length | 35 mm |
| Material | Hi - Tensile Steel |
| Finish | Plain |
| Grade | Grade 12.9 |
| Standards Met | DIN 7984 |
| Package Quantity | 1 |
| Package Type | Box |
