Description
Overview

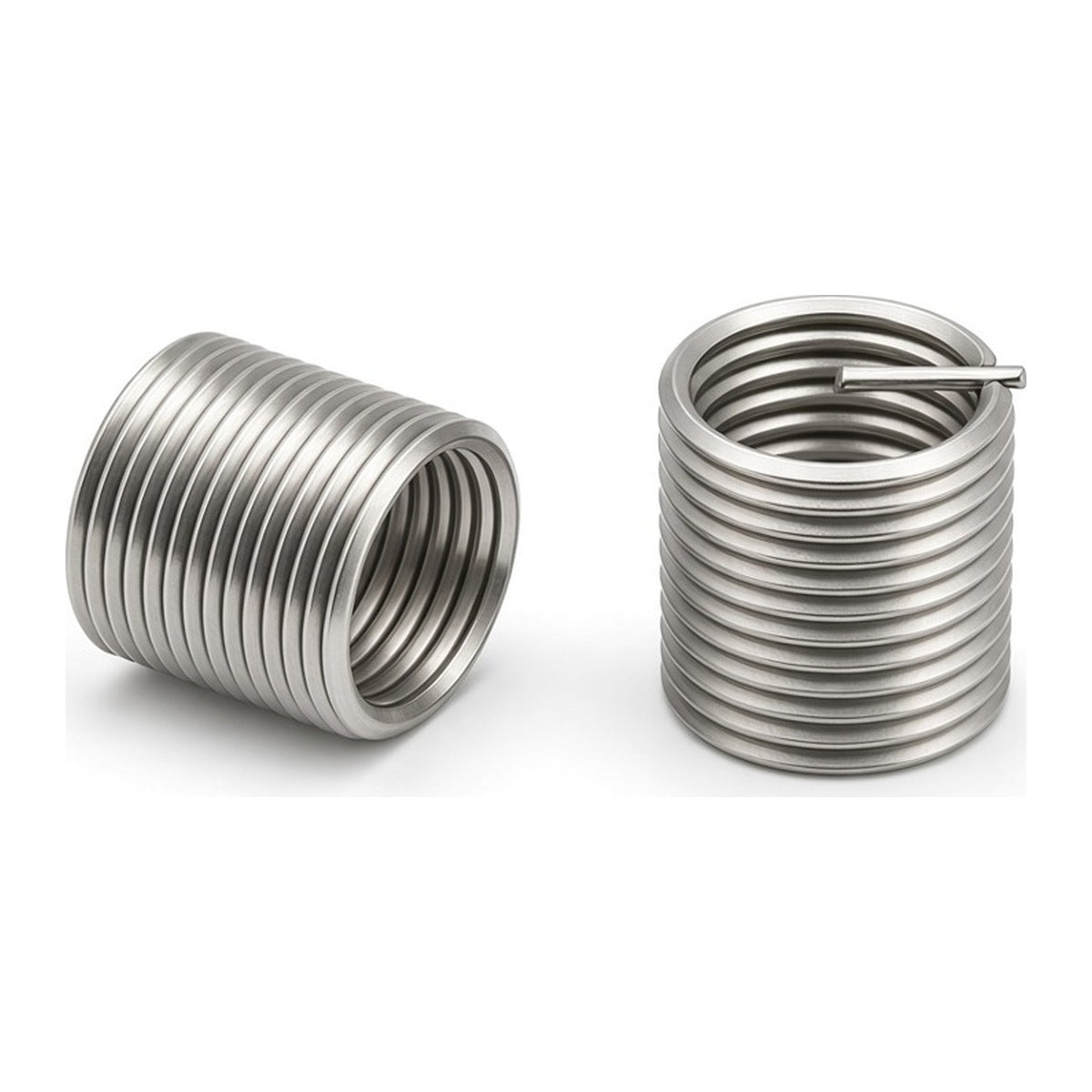

Thread insert, Steel, size M2.5.
Sold per piece. Screwman code 41300250005.
Description: HELICOIL 2.5X5 M2.5 x 5
Dimensions – DIN 8140 M2.5
| Standard | DIN 8140 |
|---|---|
| Product | Thread insert |
| Thread | M2.5 x 0.45 |
| Insert type | wire thread insert (Helicoil type) |
| STI tap drill (ref.) | 2.6 mm |
| Tap | STI M2.5 x 0.45 |
Material, Grade & Strength
| Material | Carbon steel |
|---|
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
Nominal dimensions per DIN 8140. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
Specifications
| Measurement Type | Metric |
|---|---|
| Thread Size | M2.5 |
| Thread Pitch | 0.45 mm |
| Diameter | M2.5 |
| Material | Steel |
| Finish | Plain |
| Standards Met | DIN 8140 |
| Package Quantity | 1 |
| Package Type | Box |
