Overview

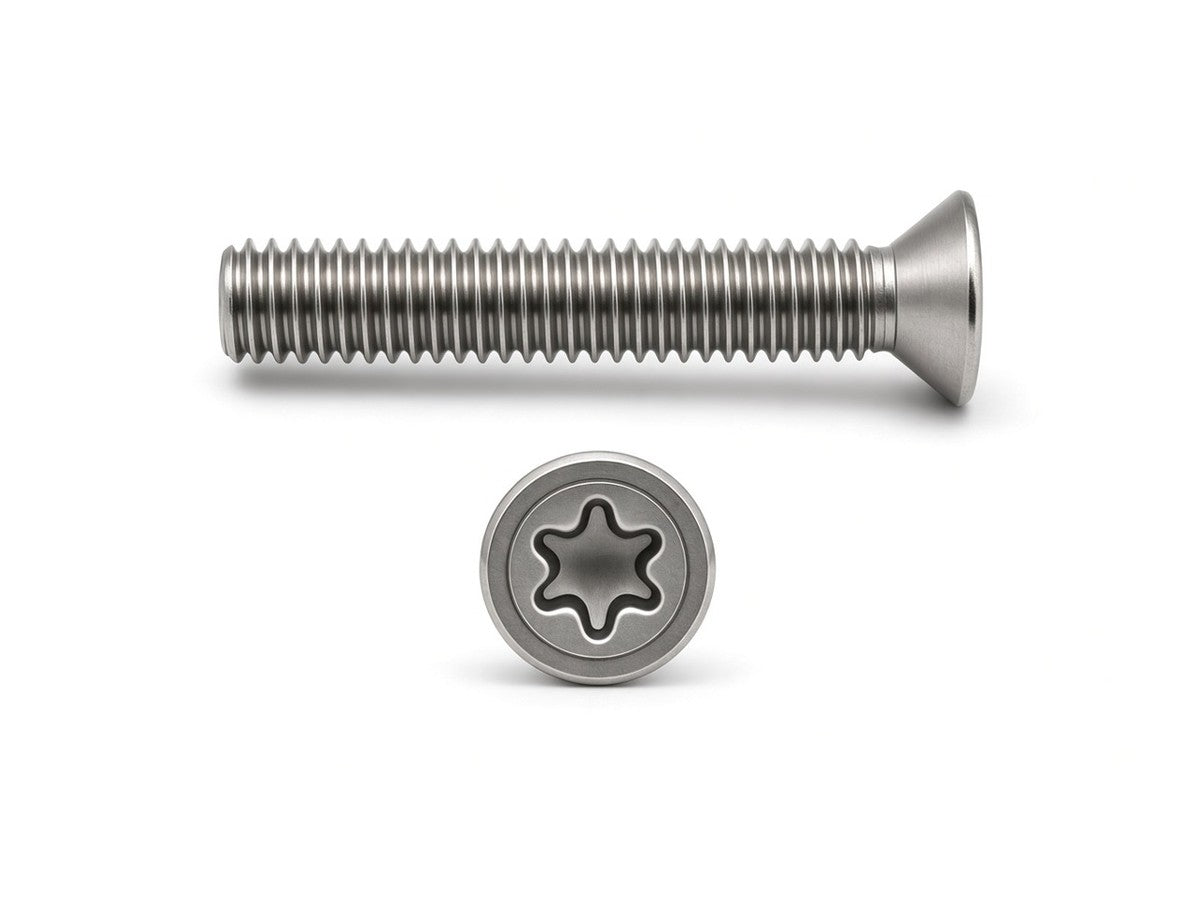

Hexalobular socket countersunk head machine screw, Stainless Steel Grade 18/8 - (A2) 304, size M2.5 x 6 MM.
Sold per piece. Screwman code MSCTSS256H.
Description: TORX CSK SCREWS S/S M2.5X6
Dimensions – ISO 14581 / DIN 965 (TX) M2.5 x 6 MM
| Standard | ISO 14581 / DIN 965 (TX) |
|---|---|
| Product | Hexalobular socket countersunk head machine screw |
| Thread | M2.5 x 0.45 |
| Length (l) | 6 mm (overall) |
| Head diameter (dk) | 5.5 mm |
| Head height (k) | 1.5 mm |
| Drive | Hexalobular (Torx) T8 |
Material, Grade & Strength
| Material | Stainless steel A2 (AISI 304) |
|---|
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
ISO 14581 data sheet – all sizes
| Size | Head dia (dk) | Head height (k) | Drive |
|---|---|---|---|
| M2 | 4.4 mm | 1.2 mm | T6 |
| M2.5 | 5.5 mm | 1.5 mm | T8 |
| M3 | 6.3 mm | 1.65 mm | T10 |
| M4 | 9.4 mm | 2.7 mm | T20 |
| M5 | 10.4 mm | 2.7 mm | T25 |
| M6 | 12.6 mm | 3.3 mm | T30 |
| M8 | 17.3 mm | 4.65 mm | T40 |
| M10 | 20 mm | 5 mm | T50 |
Nominal dimensions per ISO 14581 / DIN 965 (TX). Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
