Description
Overview

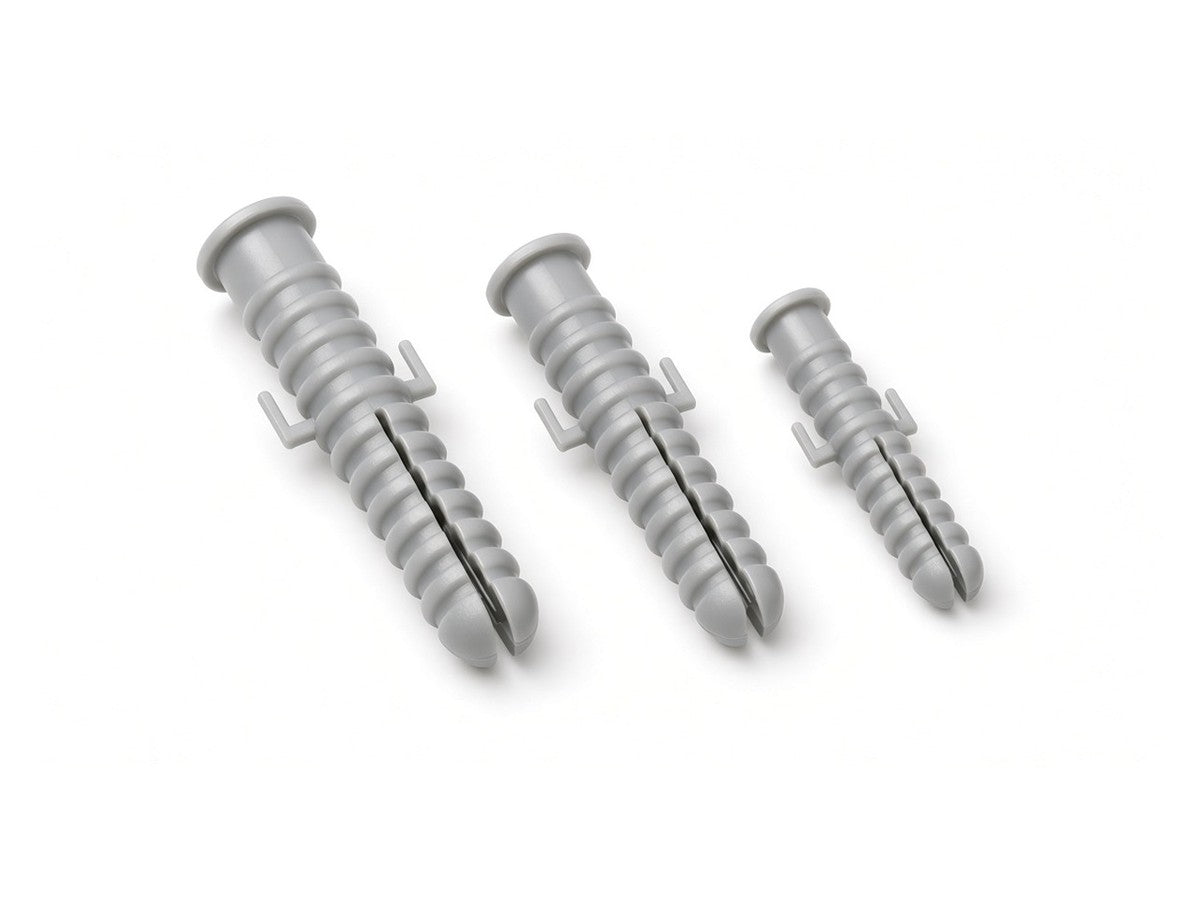

Nylon wall plug, Nylon, size 14 mm.
Sold per piece. Screwman code WPN14H.
Description: Wall Plug Nylon PA6 Grey
Dimensions – Nylon wall plug 14 mm
| Standard | - |
|---|---|
| Product | Nylon wall plug |
| Plug size | 14 mm |
| Drill diameter | 14 mm |
| Screw diameter | 10-12 mm |
Material, Grade & Strength
| Material | Polyamide 6 (nylon) |
|---|
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
Nylon wall plug data sheet – all sizes
| Size | Drill | Screw dia |
|---|---|---|
| 6 mm | 6 mm | 3.5-5 mm |
| 8 mm | 8 mm | 4.5-6 mm |
| 10 mm | 10 mm | 6-8 mm |
| 12 mm | 12 mm | 8-10 mm |
| 14 mm | 14 mm | 10-12 mm |
Nominal dimensions per Nylon wall plug. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
Specifications
No structured specifications are available yet.
