Description
Overview

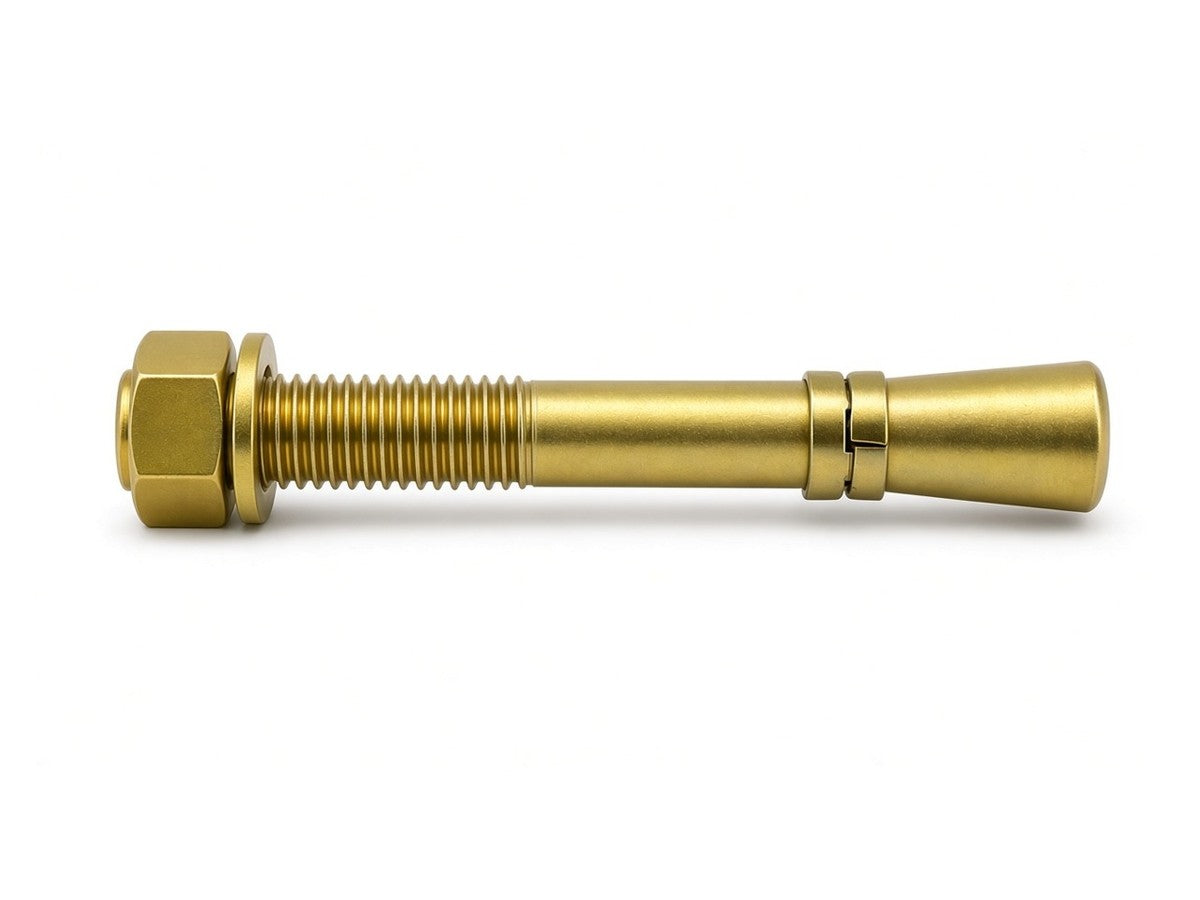

Wedge (through-bolt) anchor, Steel, Yellow Zinc Plated, size M16 x 140 MM.
Sold per piece. Screwman code TBZY16140H.
Description: Wedge Anchor
Data Sheet
Dimensions – Wedge (through-bolt) anchor M16 x 140 MM
| Standard | - |
|---|---|
| Product | Wedge (through-bolt) anchor |
| Thread | M16 x 2 |
| Length (l) | 140 mm |
| Drill diameter | 16 mm |
| Minimum embedment (typical) | 90 mm |
| Nut across flats | 24 mm |
| Installation torque (typical) | 120 Nm |
| Max fixture thickness | l - embedment - nut/washer height |
Material, Grade & Strength
| Material | Carbon steel |
|---|
Finish & Corrosion Protection
Zinc plated, yellow passivated: Electroplated zinc 5-8 um with yellow chromate/trivalent passivate; better corrosion resistance than clear zinc for the same thickness.
Wedge (through-bolt) anchor data sheet – all sizes
| Size | Drill dia | Min embedment | Spanner | Torque |
|---|---|---|---|---|
| M6 | 6 mm | 40 mm | 10 mm | 8 Nm |
| M8 | 8 mm | 50 mm | 13 mm | 20 Nm |
| M10 | 10 mm | 60 mm | 17 mm | 40 Nm |
| M12 | 12 mm | 70 mm | 19 mm | 60 Nm |
| M16 | 16 mm | 90 mm | 24 mm | 120 Nm |
| M20 | 20 mm | 110 mm | 30 mm | 240 Nm |
Nominal dimensions per Wedge (through-bolt) anchor. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
Specifications
No structured specifications are available yet.
