Description
Overview

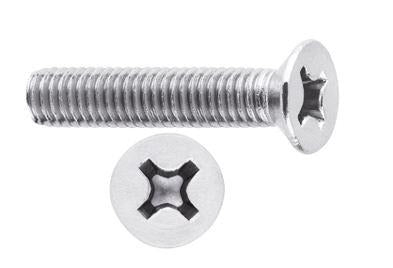

DIN 965 defines a countersunk machine screw with a cross recess drive. The countersunk head is designed to sit flush in a prepared countersink, while the cross recess provides better driver engagement than a plain slotted drive.
This selected size is specified with diameter M2, length 5 mm, thread M2, pitch 0.4 mm.
Sold in multiples of '200 pieces. 1 Box = '200 pieces.
Material, Grade & Strength
A2 stainless steel, commonly associated with 304 stainless, provides good general corrosion resistance for outdoor, clean industrial and food-related environments. Stainless threads can gall, so suitable anti-seize may be required.
Finish & Corrosion Protection
Corrosion resistance is provided by the stainless material itself rather than a plated coating.
Typical Uses
DIN 965 screws are used on covers, panels, electrical enclosures, sheet metal assemblies, machine guards and light-duty mechanical equipment where a flush finish and controlled screwdriver engagement are required.
Technical Tips
- Use the correct Phillips or Pozi driver type and size to avoid damaging the recess.
- Prepare a suitable countersink so the head seats flush.
- Do not use excessive torque on small countersunk machine screws.
- Match the material and finish to the corrosion exposure.
Frequently Asked Questions
What is the advantage over DIN 963? DIN 965 uses a cross recess drive, which generally gives better screwdriver engagement than a slotted drive.
Dimensions – DIN 965 / ISO 7046 M2 x 5
| Standard | DIN 965 / ISO 7046 |
|---|---|
| Product | Cross recess countersunk machine screw |
| Thread | M2 x 0.4 |
| Length (l) | 5 mm (overall) |
| Head diameter (dk) | 3.8 mm |
| Head height (k) | 1.2 mm |
| Drive | Pozi/Phillips PH0 |
| Weight (calculated) | 0.13 kg per 1 000 pieces |
Material, Grade & Strength
| Material | Stainless steel A2 (304) |
|---|---|
| Steel grade | AISI 304 (1.4301) |
| Composition | C max 0.07%, Cr 17.5-19.5%, Ni 8.0-10.5% |
| Property class | A2-70 (ISO 3506) unless marked -80 |
| Tensile strength Rm (min) | 700 MPa (class 70), 800 MPa (class 80) |
| Yield Rp0.2 (min) | 450 MPa (class 70), 600 MPa (class 80) |
| Typical use | general corrosion resistance, indoor/outdoor, food equipment |
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
DIN 965 data sheet – all sizes
| Size | Thread | Head diameter (dk) | Head height (k) | Drive |
|---|---|---|---|---|
| M2 | M2 x 0.4 | 3.8 mm | 1.2 mm | Pozi/Phillips PH0 |
| M2.5 | M2.5 x 0.45 | 4.7 mm | 1.5 mm | Pozi/Phillips PH1 |
| M3 | M3 x 0.5 | 5.6 mm | 1.65 mm | Pozi/Phillips PH1 |
| M3.5 | M3.5 x 0.6 | 6.5 mm | 1.93 mm | Pozi/Phillips PH2 |
| M4 | M4 x 0.7 | 7.5 mm | 2.2 mm | Pozi/Phillips PH2 |
| M5 | M5 x 0.8 | 9.2 mm | 2.5 mm | Pozi/Phillips PH2 |
| M6 | M6 x 1 | 11 mm | 3 mm | Pozi/Phillips PH3 |
| M8 | M8 x 1.25 | 14.5 mm | 4 mm | Pozi/Phillips PH4 |
| M10 | M10 x 1.5 | 18 mm | 5 mm | Pozi/Phillips PH4 |
Nominal dimensions per DIN 965 / ISO 7046. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
