Description
Overview

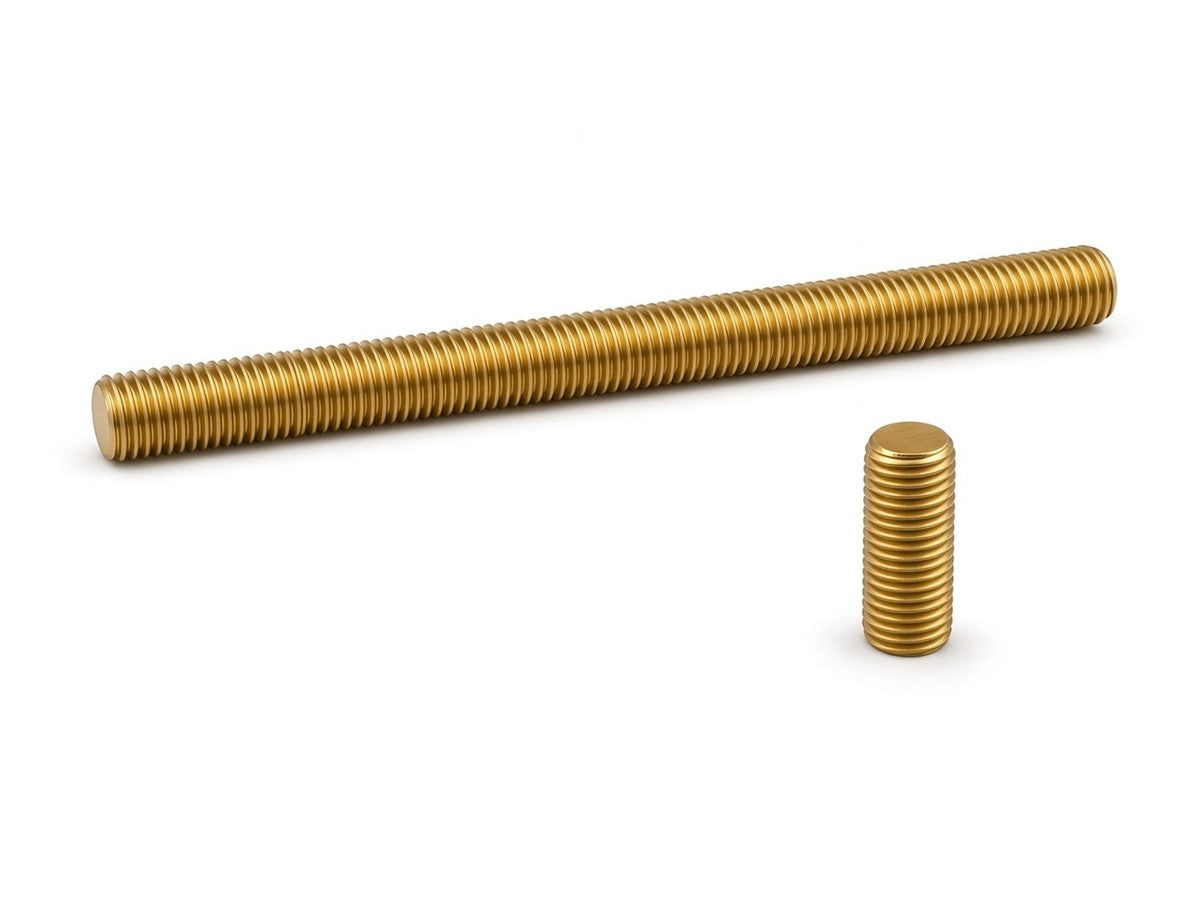

Fully Threaded Rods to DIN 975, BRASS, size M4 x 1000 MM.
Sold per piece. Screwman code TRB4E.
Finish & Corrosion Protection
Plain / self colour. No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
Dimensions – DIN 975 M4 x 1000
| Standard | DIN 975 |
|---|---|
| Product | Threaded rod (studding) |
| Thread | M4 x 0.7 |
| Length | 1000 mm |
| Stress area (As) | 8.8 mm² |
| Weight per metre | 0.082 kg |
| Weight (calculated) | 0.08 kg per 1 m length |
Material, Grade & Strength
| Material | Brass |
|---|
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
DIN 975 data sheet – all sizes
| Size | Thread | Stress area (As) | Weight per metre |
|---|---|---|---|
| M2 | M2 x 0.4 | 2.1 mm² | 0.019 kg |
| M2.5 | M2.5 x 0.45 | 3.4 mm² | 0.032 kg |
| M3 | M3 x 0.5 | 5.0 mm² | 0.047 kg |
| M3.5 | M3.5 x 0.6 | 6.8 mm² | 0.063 kg |
| M4 | M4 x 0.7 | 8.8 mm² | 0.082 kg |
| M5 | M5 x 0.8 | 14.2 mm² | 0.133 kg |
| M6 | M6 x 1 | 20.1 mm² | 0.188 kg |
| M7 | M7 x 1 | 28.9 mm² | 0.270 kg |
| M8 | M8 x 1.25 | 36.6 mm² | 0.342 kg |
| M10 | M10 x 1.5 | 58.0 mm² | 0.542 kg |
| M12 | M12 x 1.75 | 84.3 mm² | 0.788 kg |
| M14 | M14 x 2 | 115.4 mm² | 1.079 kg |
| M16 | M16 x 2 | 156.7 mm² | 1.465 kg |
| M18 | M18 x 2.5 | 192.5 mm² | 1.800 kg |
| M20 | M20 x 2.5 | 244.8 mm² | 2.289 kg |
| M22 | M22 x 2.5 | 303.4 mm² | 2.837 kg |
| M24 | M24 x 3 | 352.5 mm² | 3.296 kg |
| M27 | M27 x 3 | 459.4 mm² | 4.295 kg |
| M30 | M30 x 3.5 | 560.6 mm² | 5.241 kg |
| M33 | M33 x 3.5 | 693.6 mm² | 6.485 kg |
| M36 | M36 x 4 | 816.7 mm² | 7.636 kg |
| M39 | M39 x 4 | 975.8 mm² | 9.123 kg |
| M42 | M42 x 4.5 | 1120.9 mm² | 10.480 kg |
| M45 | M45 x 4.5 | 1306.0 mm² | 12.211 kg |
| M48 | M48 x 5 | 1473.1 mm² | 13.774 kg |
| M52 | M52 x 5 | 1757.8 mm² | 16.436 kg |
| M56 | M56 x 5.5 | 2030.0 mm² | 18.981 kg |
| M60 | M60 x 5.5 | 2362.0 mm² | 22.085 kg |
| M64 | M64 x 6 | 2676.0 mm² | 25.020 kg |
Nominal dimensions per DIN 975. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
Specifications
No structured specifications are available yet.
