DIN960 defines the standard dimensions for partially threaded fine pitch bolts, ensuring interchangeability and reliable engineering performance.

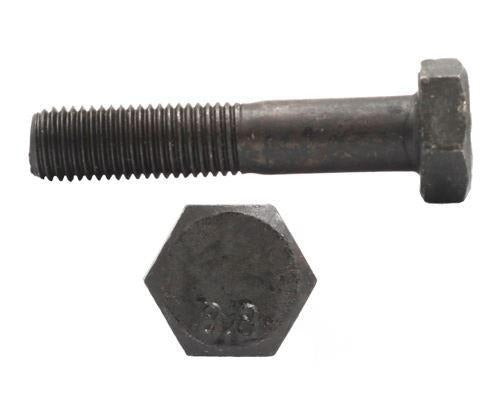

This selected size is specified with diameter M12, length 20 mm, thread M12, pitch 1.25 mm.
Sold in multiples of '100 pieces. 1 Box = '100 pieces.
Material, Grade & Strength
Grade 8.8 offers approximately 800 MPa tensile strength and 640 MPa yield strength.
Finish & Corrosion Protection
Plain finish is intended for protected indoor applications.
Typical Uses
Used in machinery, fabrication, mining, agriculture, maintenance and general engineering.
Technical Tips
- Use matching mating components.
- Follow recognised torque specifications.
- Select the correct material and finish for the operating environment.
Data Sheet
Dimensions – DIN 960 / ISO 8765 M12 x 20
| Standard | DIN 960 / ISO 8765 |
|---|---|
| Product | Hexagon head bolt, metric fine |
| Thread | M12 x 1.5 |
| Length (l) | 20 mm |
| Across flats (s) | 19 mm (ISO: 18 mm) |
| Head height (k) | 8 mm |
| Thread length (b) | full thread (short length) |
| Stress area (As) | 88.1 mm² |
| Weight (calculated) | 33.87 kg per 1 000 pieces |
Material, Grade & Strength
| Material | High tensile steel, property class 8.8 |
|---|---|
| Property class | 8.8 |
| Tensile strength Rm (min) | 800 MPa |
| Yield / 0.2% proof Rp0.2 (min) | 640 MPa |
| Proof load stress | 580 MPa |
| Hardness | 250-320 HV |
| Elongation after fracture (min) | 12 % |
| Matching nut | property class 8 (ISO 898-2) |
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
DIN 960 data sheet – all sizes
| Size | Thread | Across flats (s) | Head height (k) | Thread length (b) | Stress area (As) |
|---|---|---|---|---|---|
| M8 | M8 x 1 | 13 mm | 5.5 mm | 22 mm (ref.) | 39.2 mm² |
| M10 | M10 x 1.25 | 17 mm (ISO: 16 mm) | 7 mm | 26 mm (ref.) | 61.2 mm² |
| M12 | M12 x 1.5 | 19 mm (ISO: 18 mm) | 8 mm | 30 mm (ref.) | 88.1 mm² |
| M14 | M14 x 1.5 | 22 mm (ISO: 21 mm) | 9 mm | 40 mm (ref.) | 124.5 mm² |
| M16 | M16 x 1.5 | 24 mm | 10 mm | 44 mm (ref.) | 167.2 mm² |
| M18 | M18 x 1.5 | 27 mm | 12 mm | 48 mm (ref.) | 216.2 mm² |
| M20 | M20 x 1.5 | 30 mm | 13 mm | 52 mm (ref.) | 271.5 mm² |
| M22 | M22 x 1.5 | 32 mm (ISO: 34 mm) | 14 mm | 69 mm (ref.) | 333.1 mm² |
| M24 | M24 x 2 | 36 mm | 15 mm | 73 mm (ref.) | 384.4 mm² |
| M27 | M27 x 2 | 41 mm | 17 mm | 79 mm (ref.) | 495.7 mm² |
| M30 | M30 x 2 | 46 mm | 19 mm | 85 mm (ref.) | 621.2 mm² |
| M33 | M33 x 2 | 50 mm | 21 mm | 91 mm (ref.) | 760.8 mm² |
| M36 | M36 x 3 | 55 mm | 23 mm | 97 mm (ref.) | 864.9 mm² |
| M39 | M39 x 3 | 60 mm | 25 mm | 103 mm (ref.) | 1028.4 mm² |
Nominal dimensions per DIN 960 / ISO 8765. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
