Description
Overview

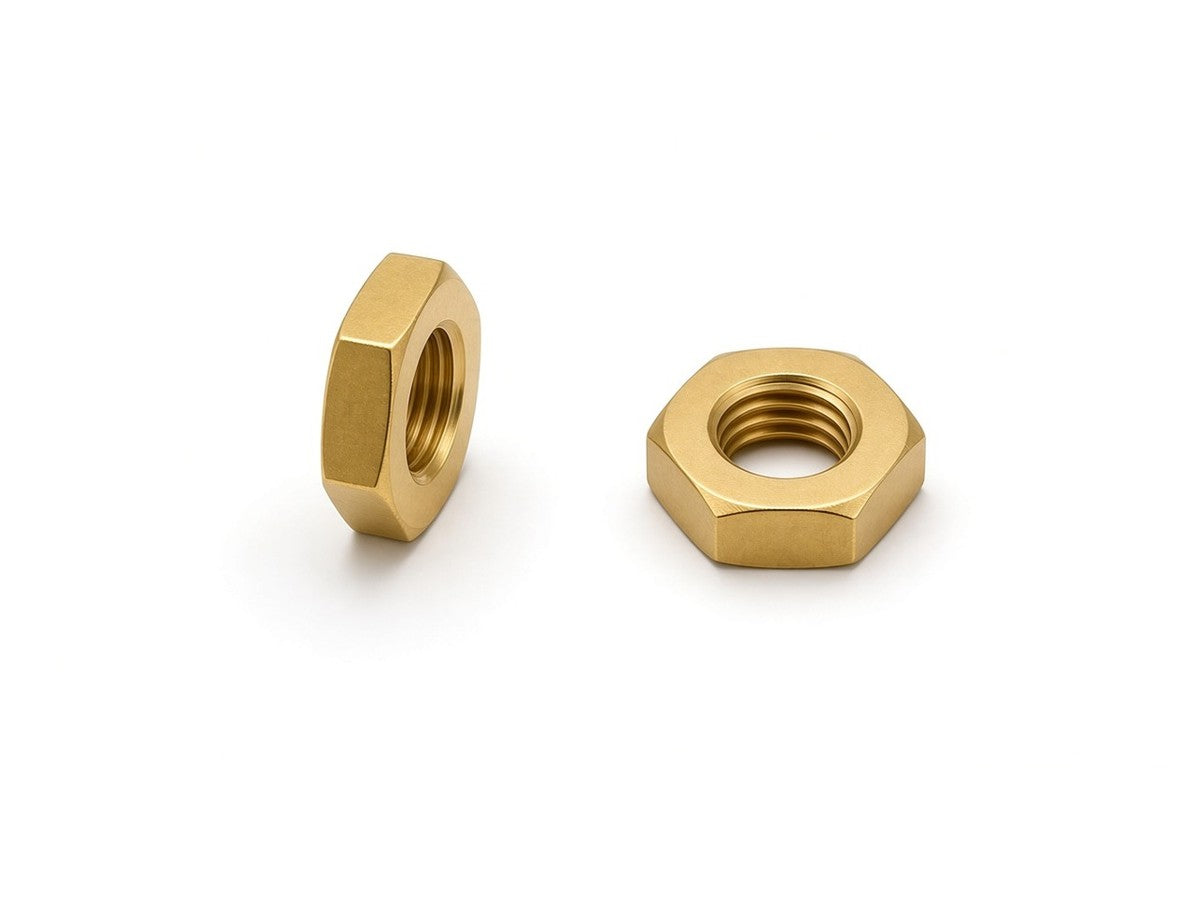

Hexagon Lock (half) Nuts to DIN 439, BRASS, size M4.
Sold per piece. Screwman code LNB4H.
Finish & Corrosion Protection
Plain / self colour. No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
Dimensions – DIN 439 / ISO 4035 M4
| Standard | DIN 439 / ISO 4035 |
|---|---|
| Product | Thin (half/lock) nut |
| Thread | M4 x 0.7 |
| Across flats (s) | 7 mm |
| Height (m) | 2.2 mm |
| Weight (calculated) | 0.59 kg per 1 000 pieces |
Material, Grade & Strength
| Material | Brass |
|---|
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
DIN 439 data sheet – all sizes
| Size | Thread | Across flats (s) | Height (m) |
|---|---|---|---|
| M3 | M3 x 0.5 | 5.5 mm | 1.8 mm |
| M4 | M4 x 0.7 | 7 mm | 2.2 mm |
| M5 | M5 x 0.8 | 8 mm | 2.7 mm |
| M6 | M6 x 1 | 10 mm | 3.2 mm |
| M8 | M8 x 1.25 | 13 mm | 4 mm |
| M10 | M10 x 1.5 | 17 mm (ISO: 16 mm) | 5 mm |
| M12 | M12 x 1.75 | 19 mm (ISO: 18 mm) | 6 mm |
| M14 | M14 x 2 | 22 mm (ISO: 21 mm) | 7 mm |
| M16 | M16 x 2 | 24 mm | 8 mm |
| M18 | M18 x 2.5 | 27 mm | 9 mm |
| M20 | M20 x 2.5 | 30 mm | 10 mm |
| M22 | M22 x 2.5 | 32 mm (ISO: 34 mm) | 11 mm |
| M24 | M24 x 3 | 36 mm | 12 mm |
| M27 | M27 x 3 | 41 mm | 13.5 mm |
| M30 | M30 x 3.5 | 46 mm | 15 mm |
| M33 | M33 x 3.5 | 50 mm | 16.5 mm |
| M36 | M36 x 4 | 55 mm | 18 mm |
| M42 | M42 x 4.5 | 65 mm | 21 mm |
| M48 | M48 x 5 | 75 mm | 24 mm |
Nominal dimensions per DIN 439 / ISO 4035. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
Specifications
No structured specifications are available yet.
