Description
Overview
DIN7 specifies the dimensional requirements for parallel pins, ensuring reliable interchangeability and engineering performance.
This selected size is specified with diameter M6, length 75 mm, thread M6, pitch 1 mm.
Sold in multiples of '25 pieces. 1 Box = '25 pieces.
Material, Grade & Strength
A2 (304) stainless steel provides excellent corrosion resistance.
Finish & Corrosion Protection
Match the finish to the service environment.
Typical Uses
Used in machinery, maintenance, manufacturing, agriculture, mining and general engineering applications.
Technical Tips
- Select the correct size and material for the application.
- Inspect components before installation.
- Follow recognised engineering practices and manufacturer recommendations.
Data Sheet

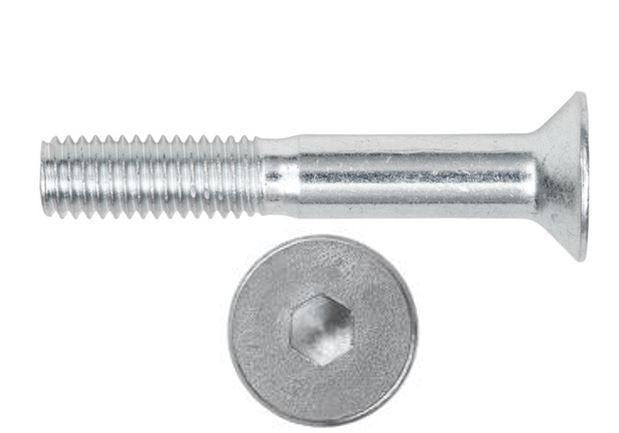

Dimensions – DIN 7991 / ISO 10642 M6 x 75
| Standard | DIN 7991 / ISO 10642 |
|---|---|
| Product | Hexagon socket countersunk screw |
| Thread | M6 x 1 |
| Length (l) | 75 mm (overall, incl. head) |
| Head diameter (dk) | 12 mm |
| Head height (k) | 3.3 mm |
| Hex key (s) | 4 mm |
| Weight (calculated) | 14.09 kg per 1 000 pieces |
Material, Grade & Strength
| Material | Stainless steel A2 (304) |
|---|---|
| Steel grade | AISI 304 (1.4301) |
| Composition | C max 0.07%, Cr 17.5-19.5%, Ni 8.0-10.5% |
| Property class | A2-70 (ISO 3506) unless marked -80 |
| Tensile strength Rm (min) | 700 MPa (class 70), 800 MPa (class 80) |
| Yield Rp0.2 (min) | 450 MPa (class 70), 600 MPa (class 80) |
| Typical use | general corrosion resistance, indoor/outdoor, food equipment |
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
DIN 7991 data sheet – all sizes
| Size | Thread | Head diameter (dk) | Head height (k) | Hex key (s) |
|---|---|---|---|---|
| M3 | M3 x 0.5 | 6 mm | 1.7 mm | 2 mm |
| M4 | M4 x 0.7 | 8 mm | 2.3 mm | 2.5 mm |
| M5 | M5 x 0.8 | 10 mm | 2.8 mm | 3 mm |
| M6 | M6 x 1 | 12 mm | 3.3 mm | 4 mm |
| M8 | M8 x 1.25 | 16 mm | 4.4 mm | 5 mm |
| M10 | M10 x 1.5 | 20 mm | 5.5 mm | 6 mm |
| M12 | M12 x 1.75 | 24 mm | 6.5 mm | 8 mm |
| M14 | M14 x 2 | 27 mm | 7 mm | 10 mm |
| M16 | M16 x 2 | 30 mm | 7.5 mm | 10 mm |
| M20 | M20 x 2.5 | 36 mm | 8.5 mm | 12 mm |
| M24 | M24 x 3 | 39 mm | 14 mm | 14 mm |
Nominal dimensions per DIN 7991 / ISO 10642. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
Specifications
No structured specifications are available yet.
