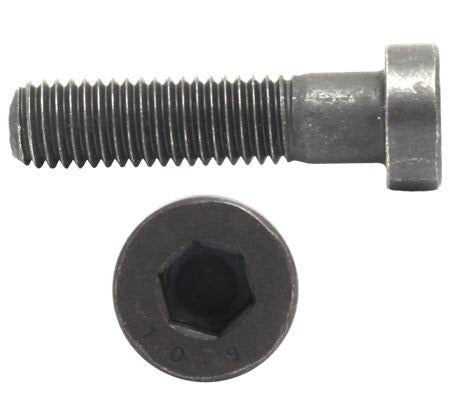

Hexagon Socket Low Head Cap Screws, DIN 7984, Alloy Grade 12.9, M3 x 10 MM

  • Hexagon Socket Low Head Cap Screws, DIN 7984, Alloy Grade 12.9, M3 x 10 MM
1 1

In stock

Ask for price

This item requires a quotation. Submit your details and required quantity and we will contact you.

Protected by Shopify contact form spam controls. Enable Shopify CAPTCHA/spam protection in admin for full CAPTCHA enforcement.

Expected delivery date:
27 Oct Usually ready in 2-3 days.

Quality product

Lightning, Fast shipping. Guaranteed.

Free 30 day return

Shop risk-free with easy return.

Description

Overview

Hexagon Socket Low Head Cap Screws to DIN 7984, Alloy Grade 12.9, size M3 x 10 MM.

Sold per piece. Screwman code CAPTSS310H.

Finish & Corrosion Protection

Plain / self colour. No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.

Dimensions – DIN 7984 M3 x 10

Standard DIN 7984
Product Hexagon socket cap screw, low head
Thread M3 x 0.5
Length (l) 10 mm
Head diameter (dk) 5.5 mm
Head height (k) 2 mm
Hex key (s) 2 mm
Thread length (b) full thread
Weight (calculated) 0.77 kg per 1 000 pieces

Material, Grade & Strength

Material High tensile alloy steel, property class 12.9
Property class 12.9
Tensile strength Rm (min) 1220 MPa
Yield / 0.2% proof Rp0.2 (min) 1100 MPa
Proof load stress 970 MPa
Hardness 385-435 HV
Elongation after fracture (min) 8 %
Matching nut property class 12 (ISO 898-2)

Finish & Corrosion Protection

Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.

DIN 7984 data sheet – all sizes
Size Thread Head diameter (dk) Head height (k) Hex key (s) Thread length (b)
M3 M3 x 0.5 5.5 mm 2 mm 2 mm 18 mm (ref.)
M4 M4 x 0.7 7 mm 2.8 mm 2.5 mm 20 mm (ref.)
M5 M5 x 0.8 8.5 mm 3.5 mm 3 mm 22 mm (ref.)
M6 M6 x 1 10 mm 4 mm 4 mm 24 mm (ref.)
M8 M8 x 1.25 13 mm 5 mm 5 mm 28 mm (ref.)
M10 M10 x 1.5 16 mm 6 mm 7 mm 32 mm (ref.)
M12 M12 x 1.75 18 mm 7 mm 8 mm 36 mm (ref.)
M14 M14 x 2 21 mm 8 mm 10 mm 40 mm (ref.)
M16 M16 x 2 24 mm 9 mm 12 mm 44 mm (ref.)
M20 M20 x 2.5 30 mm 11 mm 14 mm 52 mm (ref.)
M24 M24 x 3 36 mm 13 mm 17 mm 60 mm (ref.)

Nominal dimensions per DIN 7984. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
