Description
Overview

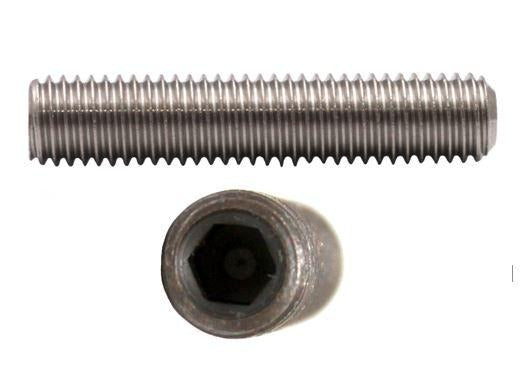

Hexagon Socket Set (grub) Screw Cup Point to DIN 916, Stainless Steel Grade 18/8 - (A2) 304, size M3 x 30 MM.
Sold per piece. Screwman code GRUBSS330H.
Finish & Corrosion Protection
Plain / self colour. No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
Data Sheet
Dimensions – DIN 916 / ISO 4029 M3 x 30
| Standard | DIN 916 / ISO 4029 |
|---|---|
| Product | Hexagon socket set (grub) screw, cup point |
| Thread | M3 x 0.5 |
| Length (l) | 30 mm |
| Hex key (s) | 1.5 mm |
| Point | cup point |
| Weight (calculated) | 1.29 kg per 1 000 pieces |
Material, Grade & Strength
| Material | Stainless steel A2 (304) |
|---|---|
| Steel grade | AISI 304 (1.4301) |
| Composition | C max 0.07%, Cr 17.5-19.5%, Ni 8.0-10.5% |
| Property class | A2-70 (ISO 3506) unless marked -80 |
| Tensile strength Rm (min) | 700 MPa (class 70), 800 MPa (class 80) |
| Yield Rp0.2 (min) | 450 MPa (class 70), 600 MPa (class 80) |
| Typical use | general corrosion resistance, indoor/outdoor, food equipment |
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
DIN 916 data sheet – all sizes
| Size | Thread | Hex key (s) | Point |
|---|---|---|---|
| M3 | M3 x 0.5 | 1.5 mm | cup point |
| M4 | M4 x 0.7 | 2 mm | cup point |
| M5 | M5 x 0.8 | 2.5 mm | cup point |
| M6 | M6 x 1 | 3 mm | cup point |
| M8 | M8 x 1.25 | 4 mm | cup point |
| M10 | M10 x 1.5 | 5 mm | cup point |
| M12 | M12 x 1.75 | 6 mm | cup point |
| M16 | M16 x 2 | 8 mm | cup point |
| M20 | M20 x 2.5 | 10 mm | cup point |
| M24 | M24 x 3 | 12 mm | cup point |
Nominal dimensions per DIN 916 / ISO 4029. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
