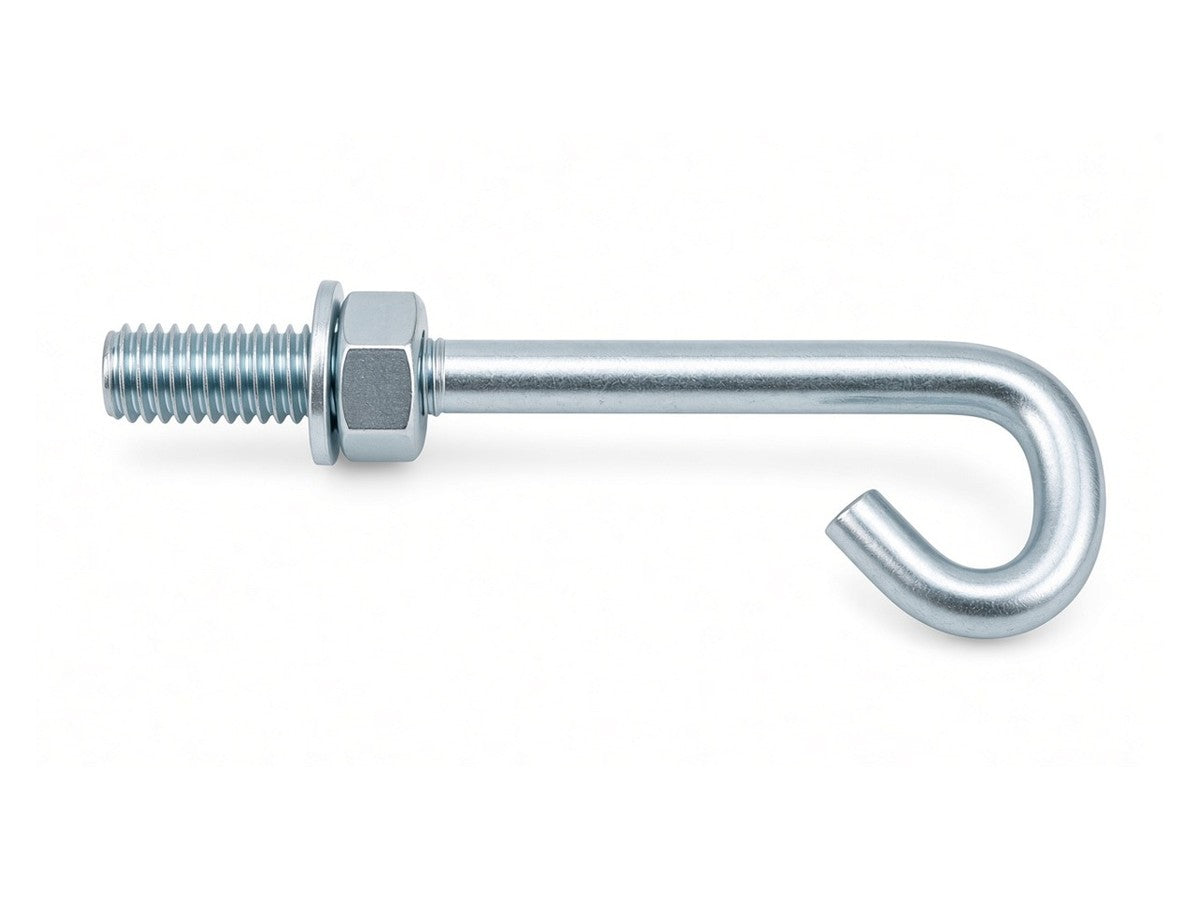

Hook bolt, Mild Steel Grade 4.8, Zinc Plated, size M6 x 50 MM.
Sold per piece. Screwman code HBNZP650H.
Description: m6x50 hook bolts z/p M6 x 50
Dimensions – Hook bolt M6 x 50 MM
| Standard | - |
|---|---|
| Product | Hook bolt |
| Thread | M6 x 1 |
| Length (l) | 50 mm |
Material, Grade & Strength
| Material | Mild steel (grade 4.6/4.8) |
|---|---|
| Property class | 4.6 / 4.8 (mild steel) |
| Tensile strength Rm (min) | 400 / 420 MPa |
| Yield strength (min) | 240 / 340 MPa |
| Proof load stress | 225 / 310 MPa |
| Matching nut | property class 5 (ISO 898-2) |
Finish & Corrosion Protection
Zinc plated (clear/blue passivated): Electroplated zinc, typically 5-8 um (ISO 4042). Economical protection for dry indoor and light outdoor use; white rust in neutral salt spray typically from ~24-72 h depending on passivate.
Nominal dimensions per Hook bolt. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
