Description
Overview

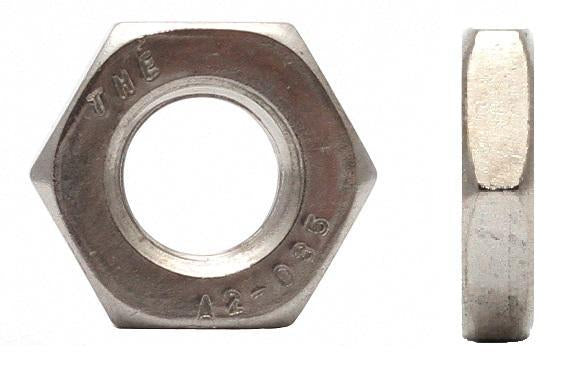

DIN439 specifies the standard dimensions for half nuts, ensuring compatibility with matching metric fasteners.
This selected size is specified with thread M6.
Sold in multiples of '200 pieces. 1 Box = '200 pieces.
Material, Grade & Strength
Select the material and property class to match the mating fastener, clamp load and corrosion environment.
Finish & Corrosion Protection
Choose the finish according to the installation environment and expected corrosion exposure.
Typical Uses
Used throughout machinery, fabrication, mining, agriculture, construction and maintenance with compatible bolts, screws, studs or threaded rod.
Technical Tips
- Match thread size and pitch.
- Use compatible property classes.
- Consider locking methods where vibration is present.
Dimensions – DIN 439 / ISO 4035 M6
| Standard | DIN 439 / ISO 4035 |
|---|---|
| Product | Thin (half/lock) nut |
| Thread | M6 x 1 |
| Across flats (s) | 10 mm |
| Height (m) | 3.2 mm |
| Weight (calculated) | 1.59 kg per 1 000 pieces |
Material, Grade & Strength
| Material | Stainless steel A2 (304) |
|---|---|
| Steel grade | AISI 304 (1.4301) |
| Composition | C max 0.07%, Cr 17.5-19.5%, Ni 8.0-10.5% |
| Property class | A2-70 (ISO 3506) unless marked -80 |
| Tensile strength Rm (min) | 700 MPa (class 70), 800 MPa (class 80) |
| Yield Rp0.2 (min) | 450 MPa (class 70), 600 MPa (class 80) |
| Typical use | general corrosion resistance, indoor/outdoor, food equipment |
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
DIN 439 data sheet – all sizes
| Size | Thread | Across flats (s) | Height (m) |
|---|---|---|---|
| M3 | M3 x 0.5 | 5.5 mm | 1.8 mm |
| M4 | M4 x 0.7 | 7 mm | 2.2 mm |
| M5 | M5 x 0.8 | 8 mm | 2.7 mm |
| M6 | M6 x 1 | 10 mm | 3.2 mm |
| M8 | M8 x 1.25 | 13 mm | 4 mm |
| M10 | M10 x 1.5 | 17 mm (ISO: 16 mm) | 5 mm |
| M12 | M12 x 1.75 | 19 mm (ISO: 18 mm) | 6 mm |
| M14 | M14 x 2 | 22 mm (ISO: 21 mm) | 7 mm |
| M16 | M16 x 2 | 24 mm | 8 mm |
| M18 | M18 x 2.5 | 27 mm | 9 mm |
| M20 | M20 x 2.5 | 30 mm | 10 mm |
| M22 | M22 x 2.5 | 32 mm (ISO: 34 mm) | 11 mm |
| M24 | M24 x 3 | 36 mm | 12 mm |
| M27 | M27 x 3 | 41 mm | 13.5 mm |
| M30 | M30 x 3.5 | 46 mm | 15 mm |
| M33 | M33 x 3.5 | 50 mm | 16.5 mm |
| M36 | M36 x 4 | 55 mm | 18 mm |
| M42 | M42 x 4.5 | 65 mm | 21 mm |
| M48 | M48 x 5 | 75 mm | 24 mm |
Nominal dimensions per DIN 439 / ISO 4035. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
Specifications
| Measurement Type | Metric |
|---|---|
| Thread Size | M6 |
| Drive Type | External Hex |
| Head Style | Hex |
| Material | Stainless Steel |
| Finish | Stainless steel |
| Grade | Grade (A2) |
| Standards Met | DIN 439 |
| Package Quantity | 200 |
| Package Type | Box |
