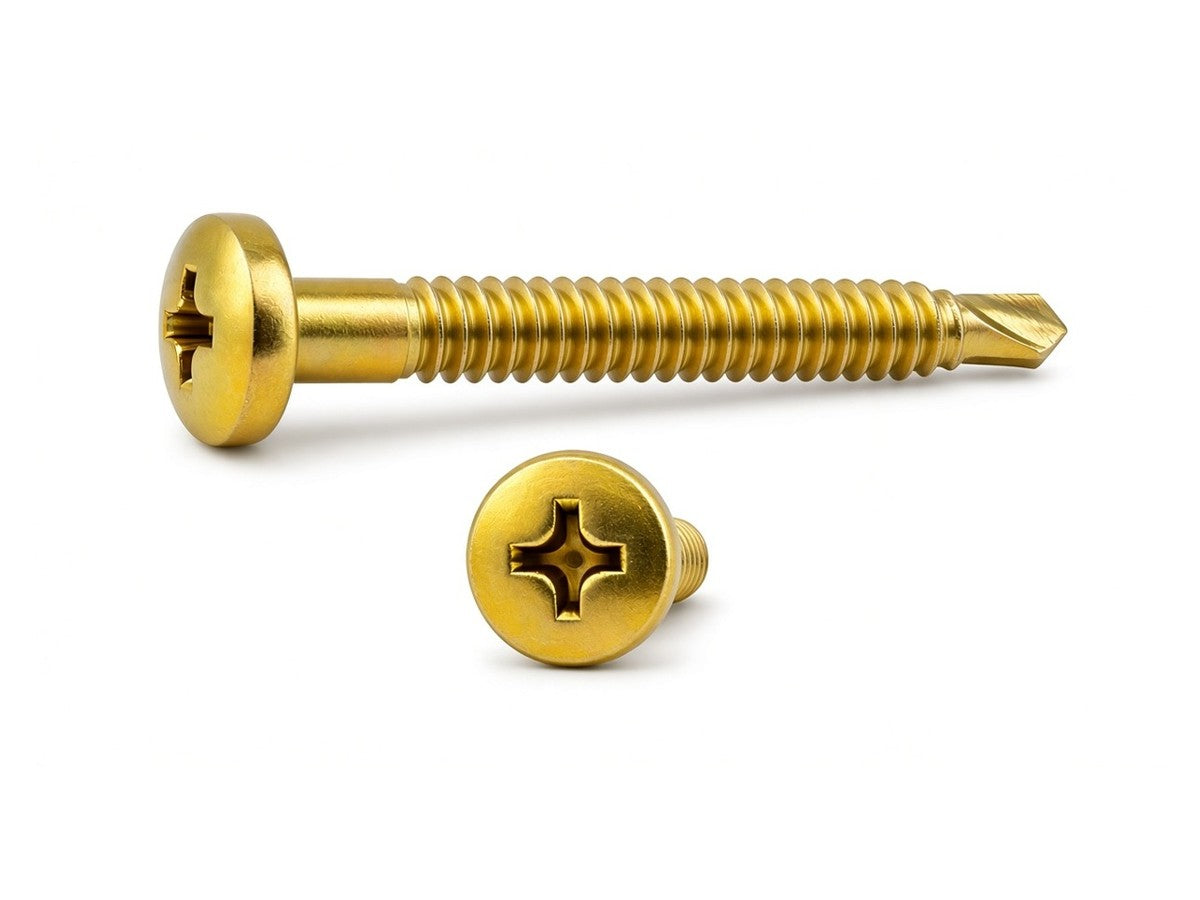

Cross recessed pan head self drilling screw, Case Hardened Steel, Yellow Zinc Plated, size 5.5 mm x 125 MM.
Sold per piece. Screwman code WTEK12125H.
Description: HEX HEAD SELF DRILLING SCREWS - PRICES PER 100 | YELLOW | 12 X 125
Dimensions – DIN 7504 M / ISO 15481 5.5 mm x 125 MM
| Standard | DIN 7504 M / ISO 15481 |
|---|---|
| Product | Cross recessed pan head self drilling screw |
| Thread | ST 5.5 (No. 12) |
| Length (l) | 125 mm |
| Head diameter (dk) | 10.8 mm |
| Head height (k) | 3.95 mm |
| Drive | Phillips PH3 |
| Drilling capacity (steel) | 1.75-5.25 mm (typical) |
Material, Grade & Strength
| Material | Case-hardened carbon steel |
|---|
Finish & Corrosion Protection
Zinc plated, yellow passivated: Electroplated zinc 5-8 um with yellow chromate/trivalent passivate; better corrosion resistance than clear zinc for the same thickness.
DIN 7504 M data sheet – all sizes
| Size | Head dia (dk) | Head height (k) | Drive | Drilling capacity |
|---|---|---|---|---|
| ST 3.5 | 6.9 mm | 2.6 mm | PH2 | 0.7-2.25 mm |
| ST 3.9 | 7.5 mm | 2.8 mm | PH2 | 0.7-2.4 mm |
| ST 4.2 | 8.2 mm | 3.05 mm | PH2 | 1.75-3.0 mm |
| ST 4.8 | 9.5 mm | 3.55 mm | PH2 | 1.75-4.4 mm |
| ST 5.5 | 10.8 mm | 3.95 mm | PH3 | 1.75-5.25 mm |
| ST 6.3 | 12.5 mm | 4.55 mm | PH3 | 2.0-6.0 mm |
Nominal dimensions per DIN 7504 M / ISO 15481. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
