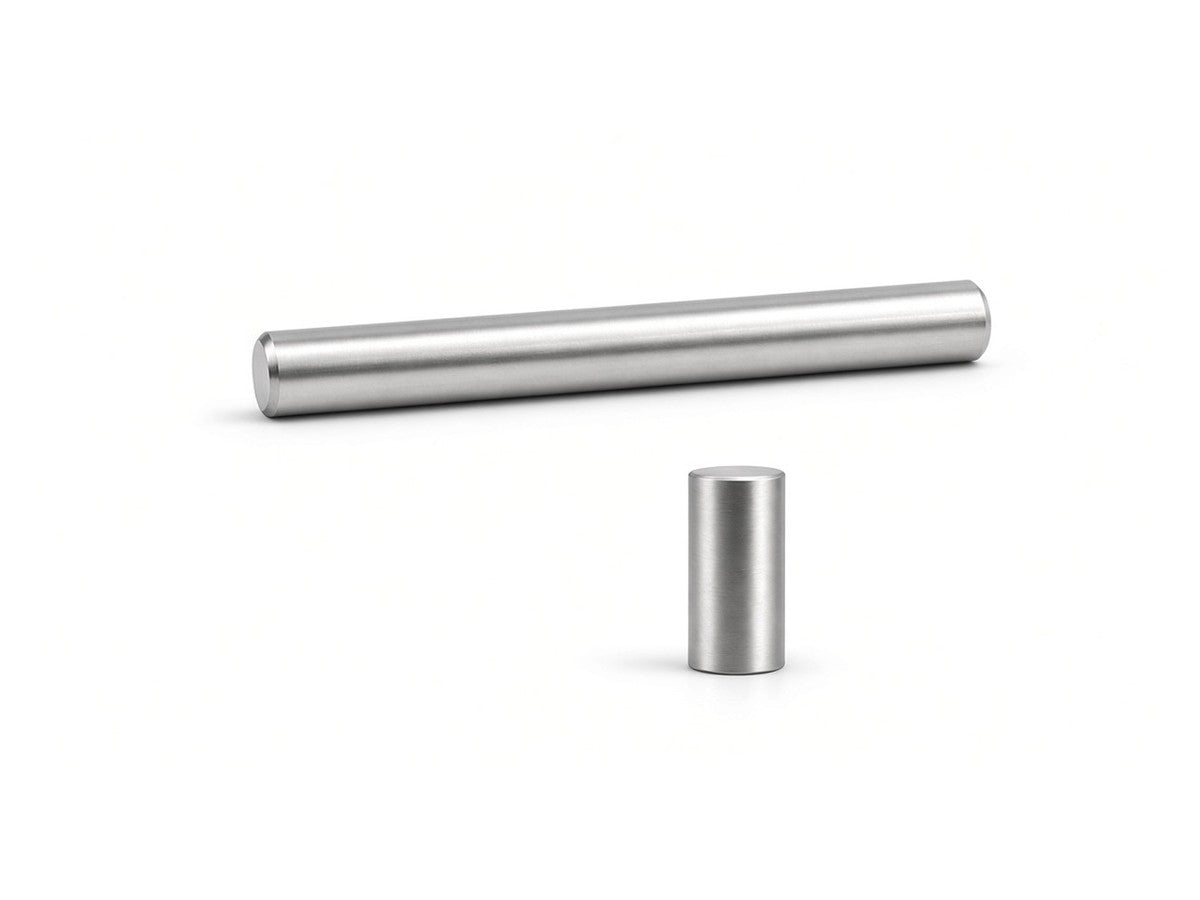

Precision Dowel Pins to DIN 6325, Stainless Steel Grade 18/8 - (A2) 304, size M4 x 8 MM.
Sold per piece. Screwman code DPSS48H.
Finish & Corrosion Protection
Plain / self colour. No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
Dimensions – DIN 6325 / ISO 8734 M4 x 8
| Standard | DIN 6325 / ISO 8734 |
|---|---|
| Product | Parallel dowel pin, hardened m6 |
| Nominal diameter | 4 mm |
| Length (l) | 8 mm |
| Tolerance | m6 (hardened, ground) |
| Weight (calculated) | 0.8 kg per 1 000 pieces |
Material, Grade & Strength
| Material | Stainless steel A2 (304) |
|---|---|
| Steel grade | AISI 304 (1.4301) |
| Composition | C max 0.07%, Cr 17.5-19.5%, Ni 8.0-10.5% |
| Typical use | general corrosion resistance, indoor/outdoor, food equipment |
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
DIN 6325 data sheet – all sizes
| Size | Nominal diameter | Tolerance |
|---|---|---|
| M2 | 2 mm | m6 (hardened, ground) |
| M2.2 | 2.2 mm | m6 (hardened, ground) |
| M2.5 | 2.5 mm | m6 (hardened, ground) |
| M2.9 | 2.9 mm | m6 (hardened, ground) |
| M3 | 3 mm | m6 (hardened, ground) |
| M3.5 | 3.5 mm | m6 (hardened, ground) |
| M3.9 | 3.9 mm | m6 (hardened, ground) |
| M4 | 4 mm | m6 (hardened, ground) |
| M4.2 | 4.2 mm | m6 (hardened, ground) |
| M4.8 | 4.8 mm | m6 (hardened, ground) |
| M5 | 5 mm | m6 (hardened, ground) |
| M5.5 | 5.5 mm | m6 (hardened, ground) |
| M6 | 6 mm | m6 (hardened, ground) |
| M6.3 | 6.3 mm | m6 (hardened, ground) |
| M7 | 7 mm | m6 (hardened, ground) |
| M8 | 8 mm | m6 (hardened, ground) |
| M10 | 10 mm | m6 (hardened, ground) |
| M12 | 12 mm | m6 (hardened, ground) |
| M14 | 14 mm | m6 (hardened, ground) |
| M16 | 16 mm | m6 (hardened, ground) |
| M18 | 18 mm | m6 (hardened, ground) |
| M20 | 20 mm | m6 (hardened, ground) |
| M22 | 22 mm | m6 (hardened, ground) |
| M24 | 24 mm | m6 (hardened, ground) |
| M27 | 27 mm | m6 (hardened, ground) |
| M30 | 30 mm | m6 (hardened, ground) |
| M33 | 33 mm | m6 (hardened, ground) |
| M36 | 36 mm | m6 (hardened, ground) |
| M39 | 39 mm | m6 (hardened, ground) |
| M42 | 42 mm | m6 (hardened, ground) |
| M45 | 45 mm | m6 (hardened, ground) |
| M48 | 48 mm | m6 (hardened, ground) |
| M52 | 52 mm | m6 (hardened, ground) |
| M56 | 56 mm | m6 (hardened, ground) |
| M60 | 60 mm | m6 (hardened, ground) |
| M64 | 64 mm | m6 (hardened, ground) |
Nominal dimensions per DIN 6325 / ISO 8734. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
