Description
Overview

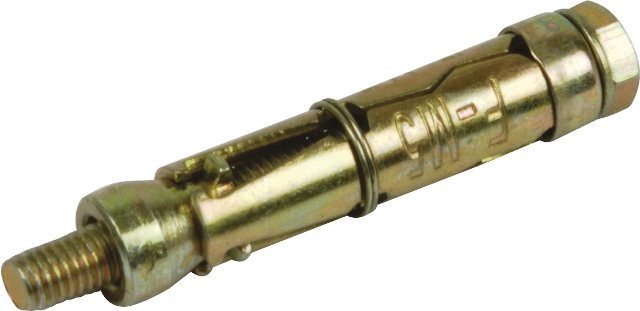

Shield (sleeve) anchor, loose bolt type, Steel, size M8.
Sold per piece. Screwman code RAW8H.
Description: SHIELD ANCHOR MILD STEEL 4.8 M 8
Dimensions – Shield (sleeve) anchor, loose bolt type M8
| Standard | - |
|---|---|
| Product | Shield (sleeve) anchor, loose bolt type |
| Bolt thread | M8 x 1.25 |
| Drill diameter | 14 mm (typical) |
Material, Grade & Strength
| Material | Carbon steel |
|---|
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
Shield (sleeve) anchor, loose bolt type data sheet – all sizes
| Size | Drill dia |
|---|---|
| M6 | 12 mm |
| M8 | 14 mm |
| M10 | 16 mm |
| M12 | 20 mm |
| M16 | 25 mm |
Nominal dimensions per Shield (sleeve) anchor, loose bolt type. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
Specifications
No structured specifications are available yet.
