Description
Overview

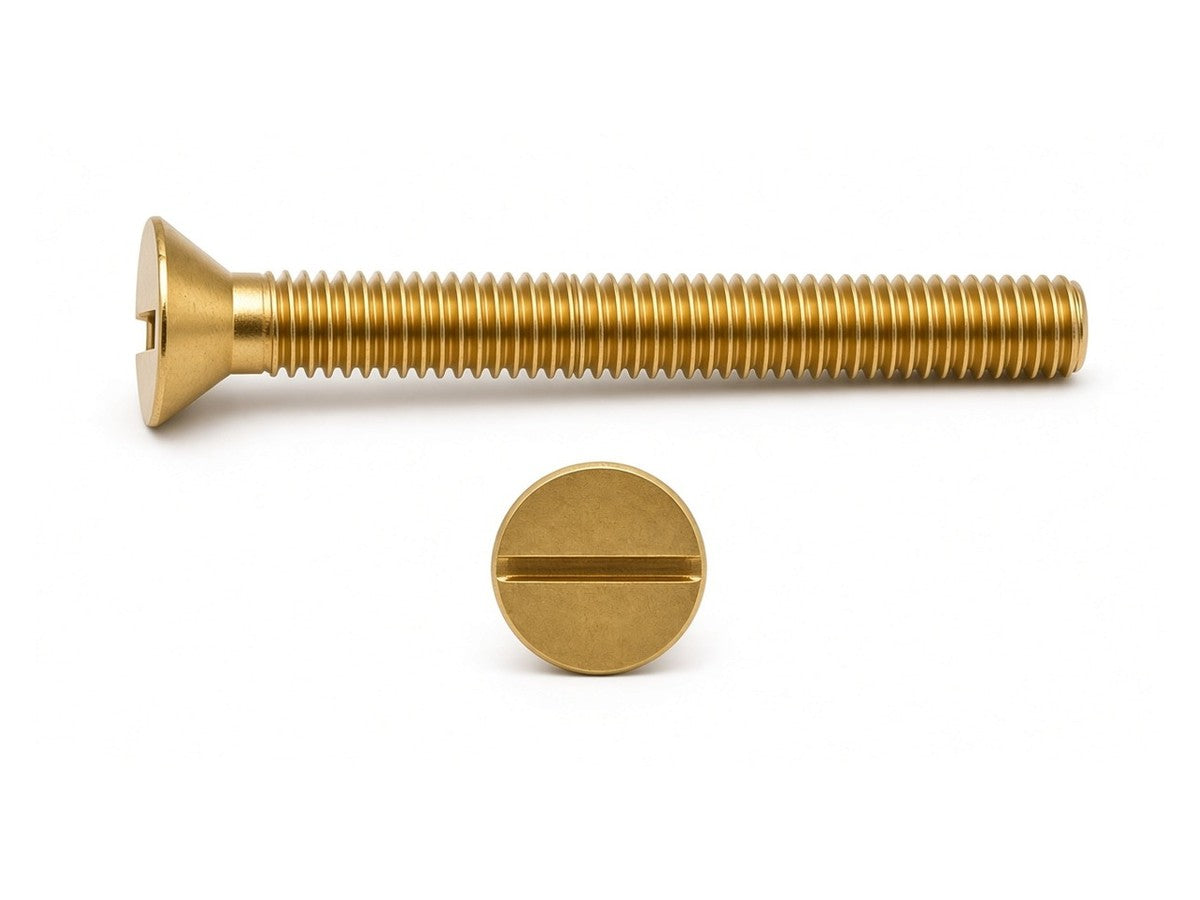

Slotted Countersunk Head Machine Screws DIN 963 to DIN 963, BRASS, size M5 x 30 MM.
Sold per piece. Screwman code MSCSB530H.
Finish & Corrosion Protection
Plain / self colour. No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
Dimensions – DIN 963 / ISO 2009 M5 x 30
| Standard | DIN 963 / ISO 2009 |
|---|---|
| Product | Slotted countersunk machine screw |
| Thread | M5 x 0.8 |
| Length (l) | 30 mm (overall) |
| Head diameter (dk) | 9.2 mm |
| Head height (k) | 2.5 mm |
| Drive | Slotted |
| Weight (calculated) | 4.51 kg per 1 000 pieces |
Material, Grade & Strength
| Material | Brass |
|---|
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
DIN 963 data sheet – all sizes
| Size | Thread | Head diameter (dk) | Head height (k) | Drive |
|---|---|---|---|---|
| M2 | M2 x 0.4 | 3.8 mm | 1.2 mm | Slotted |
| M2.5 | M2.5 x 0.45 | 4.7 mm | 1.5 mm | Slotted |
| M3 | M3 x 0.5 | 5.6 mm | 1.65 mm | Slotted |
| M3.5 | M3.5 x 0.6 | 6.5 mm | 1.93 mm | Slotted |
| M4 | M4 x 0.7 | 7.5 mm | 2.2 mm | Slotted |
| M5 | M5 x 0.8 | 9.2 mm | 2.5 mm | Slotted |
| M6 | M6 x 1 | 11 mm | 3 mm | Slotted |
| M8 | M8 x 1.25 | 14.5 mm | 4 mm | Slotted |
| M10 | M10 x 1.5 | 18 mm | 5 mm | Slotted |
Nominal dimensions per DIN 963 / ISO 2009. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
