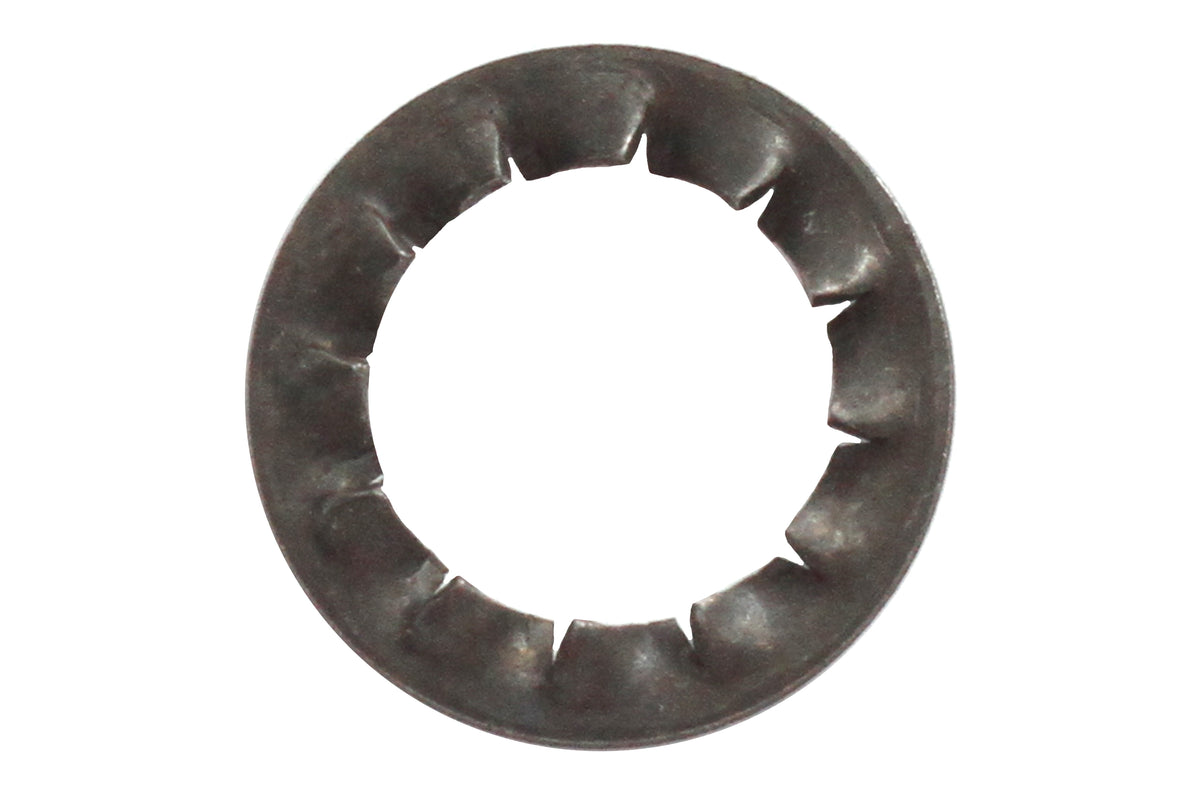

Star Lock Washers (serrated) to DIN 6798, SPRING, size M10.
Sold per piece. Screwman code FWIL10H.
Finish & Corrosion Protection
Plain / self colour. No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
Data Sheet
Dimensions – DIN 6798 J M10
| Standard | DIN 6798 J |
|---|---|
| Product | Serrated lock washer, internal teeth |
| Nominal size | M10 |
| Inside diameter (d1) | 10.5 mm |
| Outside diameter (d2) | 18 mm |
| Thickness (h) | 0.9 mm |
| Weight (calculated) | 1.19 kg per 1 000 pieces |
Material, Grade & Strength
| Material | Spring |
|---|
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
DIN 6798 J data sheet – all sizes
| Size | Nominal size | Inside diameter (d1) | Outside diameter (d2) | Thickness (h) |
|---|---|---|---|---|
| M3 | M3 | 3.2 mm | 6 mm | 0.4 mm |
| M4 | M4 | 4.3 mm | 8 mm | 0.5 mm |
| M5 | M5 | 5.3 mm | 10 mm | 0.6 mm |
| M6 | M6 | 6.4 mm | 11 mm | 0.7 mm |
| M8 | M8 | 8.4 mm | 15 mm | 0.8 mm |
| M10 | M10 | 10.5 mm | 18 mm | 0.9 mm |
| M12 | M12 | 13 mm | 20.5 mm | 1 mm |
Nominal dimensions per DIN 6798 J. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
