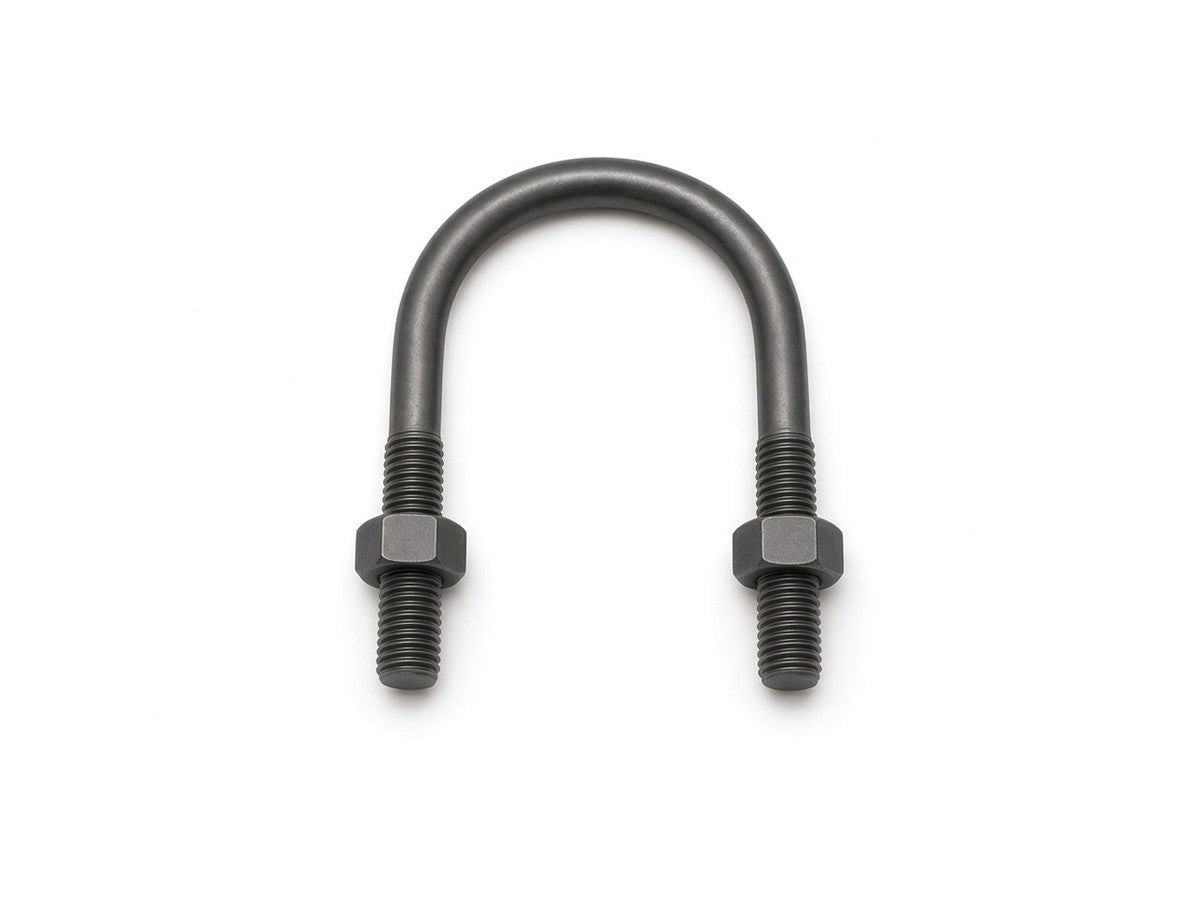

U-bolt, Mild Steel Grade 4.8, size M6.
Sold per piece. Screwman code PROD-1.
Description: U BOLT M6 SQ ROLLED SPECIAL 6
Dimensions – U-bolt M6
| Standard | - |
|---|---|
| Product | U-bolt |
| Thread | M6 x 1 |
Material, Grade & Strength
| Material | Mild steel (grade 4.6/4.8) |
|---|---|
| Property class | 4.6 / 4.8 (mild steel) |
| Tensile strength Rm (min) | 400 / 420 MPa |
| Yield strength (min) | 240 / 340 MPa |
| Proof load stress | 225 / 310 MPa |
| Matching nut | property class 5 (ISO 898-2) |
Finish & Corrosion Protection
Plain / self colour: No applied coating. Stainless, brass and nylon parts are supplied plain; plain steel parts need oil, paint or protected environments.
Nominal dimensions per U-bolt. Weights are calculated from nominal dimensions and are a guide only (±10%). Values for fit and strength should be confirmed against the standard for critical applications.
